首頁 > 產品中心 > 快換接頭 > 快換接頭 > 快速接頭-PAV1系列

·過渡接頭+ ·軟管接頭+ ·套筒+ ·軟管及軟管總成+ ·快換接頭+ ·球閥+ ·管夾+ ·接頭附件-密封件+ ·總成附件+ ·測試接頭+ ·壓力表+ ·閥類+

< >

產品名稱：

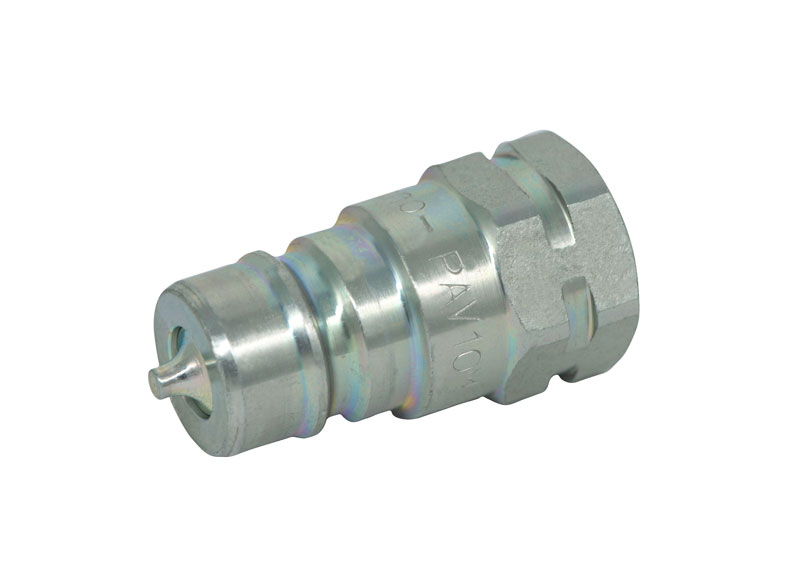

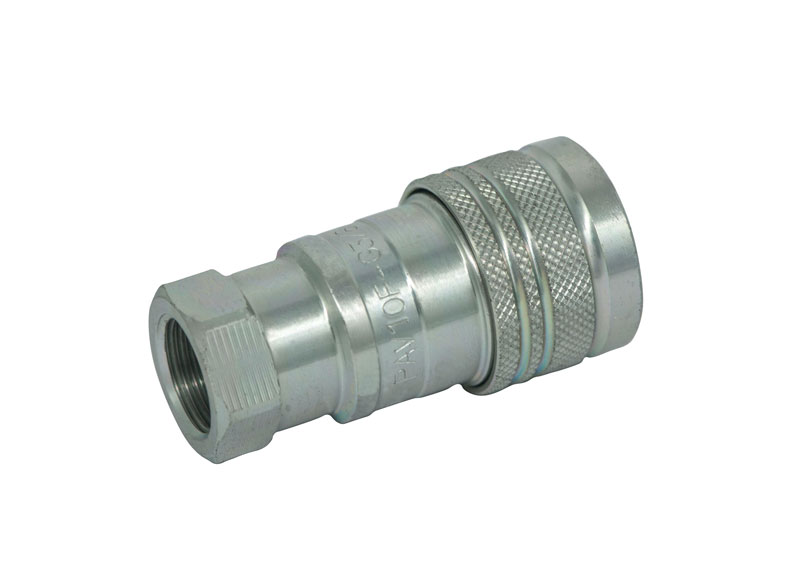

快速接頭-PAV1系列

產品系列搜索

請選擇您想要尋找的相關產品系列

產品描述

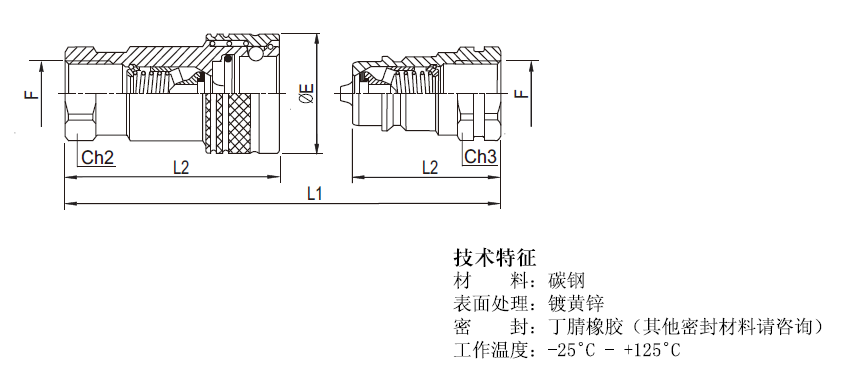

DNP	BG	USA	ISO	CH2	CH3	?E	L1	L2	L3	F	陰接頭（F)	陽接頭（M)
06	1	04	6.3	19	19	26	70	59	35	G 1/4	PAV1.0606.002	PAV1.0606.003
										1/4 NPT	PAV1.0606.012	PAV1.0606.013
										RC 1/4	PAV1.0606.042	PAV1.0606.043
10	2	06	10	22	22	30	85	60.5	42.5	G 3/8	PAV1.1010.002	PAV1.1010.003
										3/8 NPT	PAV1.1010.012	PAV1.1010.013
										RC 3/8/4	PAV1.1010.042	PAV1.1010.043
13	3	08	12.5	27	27	38	96	70	48	G 1/2	PAV1.1313.002	PAV1.1313.003
										1/2 NPT	PAV1.1313.012	PAV1.1313.013
										RC 1/2	PAV1.1313.042	PAV1.1313.043
										M22X1.5	PAV1.1322.102	PAV1.1322.103
										3/4 UNF	PAV1.1319.032	PAV1.1319.033
20	4	12	20	34	34	45	114	84.5	57	G 3/4	PAV1.2019.002	PAV1.2019.003
										3/4 NPT	PAV1.2019.012	PAV1.2019.013
										RC 3/4	PAV1.2019.042	PAV1.2019.043
25	5	16	25	41	41	52	131	99	65.5	G 1	PAV1.2525.002	PAV1.2525.003
										1 NPT	PAV1.2525.012	PAV1.2525.013
										RC 1	PAV1.2525.042	PAV1.2525.043
30	6	20	31.5	50	50	70	150	117	75	G1 1/4	PAV1.3031.002	PAV1.3031.003
										1 1/4NPT	PAV1.3031.012	PAV1.3031.013
										RC 1 1/4	PAV1.3939.002	PAV1.3939.003
39	7	24	40	60	60	82	167	133	84	G1 1/4	PAV1.3031.042	PAV1.3031.043
										1 1/2NPT	PAV1.3939.012	PAV1.3939.013
										RC 1 1/2	PAV1.3939.042	PAV1.3939.043
50	8	32	50	75	75	99	216	169	108	G 2	PAV1.5051.002	PAV1.5051.003
										2 NPT	PAV1.5051.012	PAV1.5051.013
										RC 2	PAV1.5051.042	PAV1.5051.043

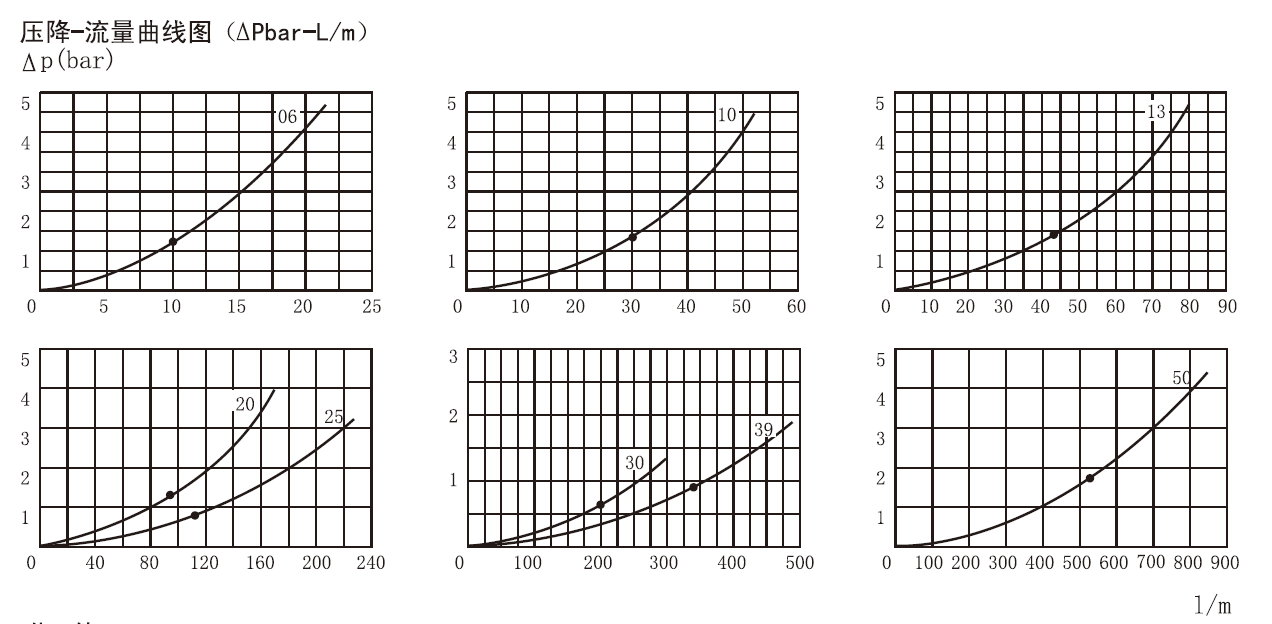

技術參數

DNP	BG		USA	ISO		DN(mm)	最大工作壓力		公稱流量（l/m)		陽接頭最小爆破壓力	陰接頭最小爆破壓力	組件最小爆破壓力
06	1		04	6.3		5	350		9.6		1450	1880	1300
10	2		06	10		9	300		30		1450	1530	1200
13	3		08	12.5		10.6	250		43		1060	1300	1160
20	4		12	20		15.7	250		93		1200	1290	1040
25	5		16	25		17.3	250		113		1000	1160	1000
30	6		20	31.5		22.8	250		196		1020	1000	100
39	7		24	40		30	200		336		830	800	800
50	8		32	50		37.6	190		536		760	1000	850

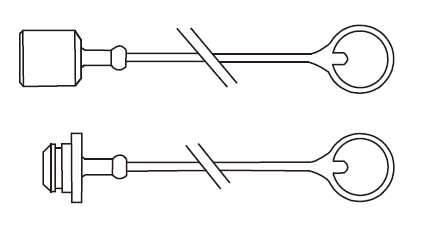

附件

DNP		防塵塞			防塵帽			顏色		材料
06		SPAV.06002			SPAV.06003			紅		聚乙烯
10		SPAV.10002			SPAV.10003			紅		聚乙烯
13		SPAV.13002			SPAV.13003			紅		聚氯乙烯
13		SPAV.13012			SPAV.13013			黃		聚氯乙烯
13		SPAV.13022			SPAV.13023			綠		聚氯乙烯
13		SPAV.13032			SPAV.13033			藍		聚氯乙烯
13		SPAV.13042			SPAV.13043			黑		聚氯乙烯
20		SPAV.20002			SPAV.20003			紅		聚氯乙烯
20		SPAV.25002			SPAV.25003			紅		聚乙烯
