產品名稱：
美制JIC外螺紋/ 重系列法蘭 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

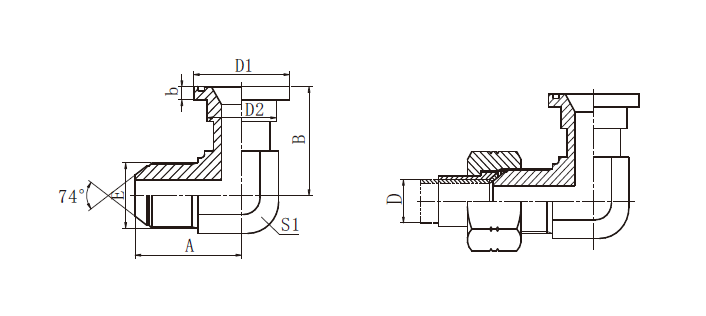

| 訂貨號 | 螺 紋 | 法蘭型號 | O形圈 | 尺 寸 | |||||
| E | A | B | b | D1 | D2 | S1 | |||
| AJFH-08/9 | 3/4"X16 | 1/2" | O210 | 32.5 | 44 | 7.75 | 31.7 | 24 | 19 |
| AJFH-10-08/9 | 7/8"X14 | 1/2" | O210 | 37.5 | 46 | 7.75 | 31.7 | 24 | 22 |
| AJFH-10-12/9 | 7/8"X14 | 3/4" | O214 | 41 | 54.1 | 8.76 | 41.3 | 32 | 27 |
| AJFH-12/9 | 1.1/16"X12 | 3/4" | O214 | 44.2 | 54.1 | 8.76 | 41.3 | 32 | 27 |
| AJFH-12-16/9 | 1.1/16"X12 | 1" | O219 | 48 | 60.2 | 9.6 | 47.6 | 38 | 33 |
| AJFH-16/9 | 1.5/16"X12 | 1" | O219 | 49 | 60.2 | 9.53 | 47.6 | 38 | 33 |
| AJFH-16-12/9 | 1.5/16"X12 | 3/4" | O214 | 49 | 57 | 8.76 | 41.3 | 32 | 33 |
| AJFH-16-20/9 | 1.5/16"X12 | 1.1/4" | O222 | 54 | 66.5 | 10.29 | 54 | 44 | 41 |
| AJFH-20/9 | 1.5/8"X12 | 1.1/4" | O222 | 55.5 | 66.5 | 10.29 | 54 | 44 | 41 |
| AJFH-20-16/9 | 1.5/8"X12 | 1" | O219 | 55.5 | 65 | 9.53 | 47.6 | 38 | 41 |
| AJFH-20-24/9 | 1.5/8"X12 | 1.1/2" | O225 | 59.5 | 79.3 | 12.57 | 63.5 | 51 | 48 |
| AJFH-24/9 | 1.7/8"X12 | 1.1/2" | O225 | 62.5 | 79.3 | 12.57 | 63.5 | 51 | 48 |
| AJFH-24-20/9 | 1.7/8"X12 | 1.1/4" | O222 | 62.5 | 70 | 10.29 | 54 | 44 | 48 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
