產品名稱：
JIC外螺紋/公制外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

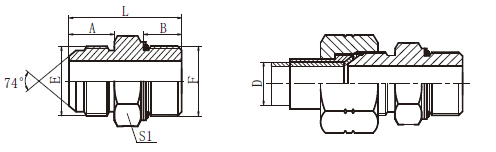

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | L | S1 | |
| AJ7-04-12 | 7/16"X20 | M12X1.5 | O09.3X2.4 | 14 | 11 | 31 | 17 |
| AJ7-04-14 | 7/16"X20 | M14X1.5 | O11.3X2.4 | 14 | 11 | 31 | 19 |
| AJ7-06-14 | 9/16"X18 | M14X1.5 | O11.3X2.4 | 14.1 | 11 | 31 | 19 |
| AJ7-06-16 | 9/16"X18 | M16X1.5 | O13.3X2.4 | 14.1 | 11.5 | 33.5 | 22 |
| AJ7-06-18 | 9/16"X18 | M18X1.5 | O15.3X2.4 | 14.1 | 12.5 | 34.5 | 24 |
| AJ7-08-16 | 3/4"X16 | M16X1.5 | O13.3X2.4 | 16.7 | 11.5 | 36 | 22 |
| AJ7-08-18 | 3/4"X16 | M18X1.5 | O15.3X2.4 | 16.7 | 12.5 | 37 | 24 |
| AJ7-08-22 | 3/4"X16 | M22X1.5 | O19.3X2.4 | 16.7 | 13 | 39.5 | 27 |
| AJ7-10-18 | 7/8"X14 | M18X1.5 | O15.3X2.4 | 19.3 | 12.5 | 40 | 24 |
| AJ7-10-22 | 7/8"X14 | M22X1.5 | O19.3X2.4 | 19.3 | 13 | 42 | 27 |
| AJ7-12-22 | 1.1/16"X12 | M22X1.5 | O19.3X2.4 | 21.9 | 13 | 47.5 | 30 |
| AJ7-12-27 | 1.1/16"X12 | M27X2 | O23.5X3.0 | 21.9 | 16 | 49 | 32 |
| AJ7-16-27 | 1.5/16"X12 | M27X2 | O23.5X3.0 | 23.1 | 16 | 52.5 | 36 |
| AJ7-16-33 | 1.5/16"X12 | M33X2 | O29.5X3.0 | 23.1 | 16 | 52 | 41 |
| AJ7-20-42 | 1.5/8"X12 | M42X2 | O38.5X3.0 | 24.3 | 16 | 58 | 50 |
| AJ7-24-48 | 1.7/8"X12 | M48X2 | O44.5X3.0 | 27.5 | 17.5 | 63 | 55 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
