首頁 > 產品中心 > 過渡接頭 > 美制JIC接頭 > 美制JIC外螺紋/英錐管外螺紋 90°彎接頭
< >

產品名稱:

美制JIC外螺紋/英錐管外螺紋 90°彎接頭

產品系列搜索

請選擇您想要尋找的相關產品系列

產品描述

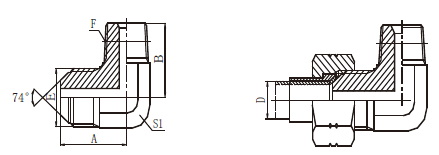

訂貨號螺  紋

尺  寸

EF

ABS1
AJ4-02/95/16"X24R1/8"X28

20.52111
AJ4-04-02/97/16"X20R1/8"X28

24.52111
AJ4-04/97/16"X20R1/4"X19

26.625.514
AJ4-04-06/97/16"X20R3/8"X19

27.52816
AJ4-06-04/99/16"X18R1/4"X19

26.925.514
AJ4-06/99/16"X18R3/8"X19

28.528.516
AJ4-06-08/99/16"X18R1/2"X14

323622
AJ4-08-06/93/4"X16R3/8"X19

3230.519
AJ4-08/93/4"X16R1/2"X14

34.83622
AJ4-08-12/93/4"X16R3/4"X14

37.943.527
AJ4-10-06/97/8"X14R3/8"X19

383222
AJ4-10-08/97/8"X14R1/2"X14

37.83622
AJ4-12-08/91.1/16"X12R1/2"X14

44.24027
AJ4-12/91.1/16"X12R3/4"X14

44.243.527
AJ4-12-16/91.1/16"X12R1"X11

47.85033
AJ4-16-12/91.5/16"X12R3/4"X14

4947.533
AJ4-16/91.5/16"X12R1"X11

495033
AJ4-20-16/91.5/8"X12R1"X11

55.556.541
AJ4-20/91.5/8"X12R1.1/4"X11

55.556.541
AJ4-24-20/91.7/8"X12R1.1/4"X11

62.56148
AJ4-24/91.7/8"X12R1.1/2"X11

62.562.548
AJ4-32/92.1/2"X12R2"X11

75.46763

注:螺母及襯套需另行訂貨,配用螺母及襯套分別選用SJN、SJS。
